Product Chart

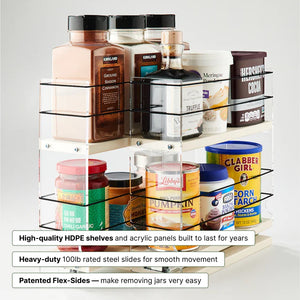

Flex-Sides, Our Patented, Superior Solution
for Easy On/Off and Container Retention.
Uncompromised Made in USA Craftmanship.
-Most Spices in the Smallest Space
-Individual - Full Extension Drawers
-Stack 1/2 Size Spice Jars
Sorted by base width, from widest (6.9") to narrowest (2.25")
Separated by unit depths of 10.6”, 13.8”, 18.0" and then 22.1”
TABLE OF ALL PRODUCTS (INCHES)
|
x11 Units - 10.6" Depth
|
Material | This Unit | Unit Width (Base) | Unit Height | Drawers and Tier Spacing |
Capacity in Spice Jars (2"x5") |
|

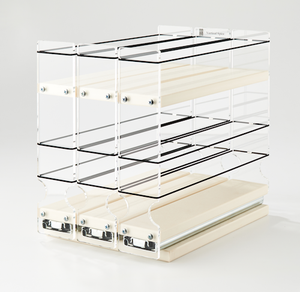

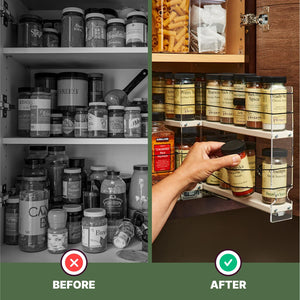

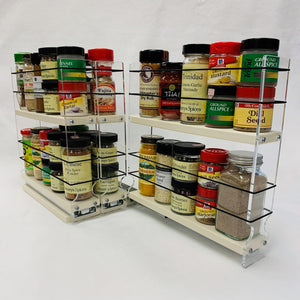

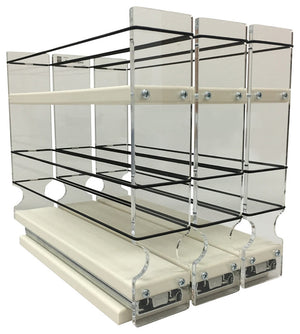

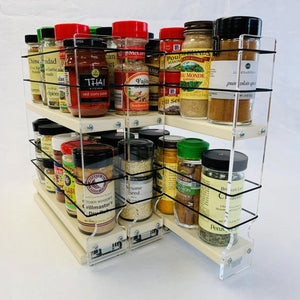

222 x 2 x 11
|
Three 2.1” Wide Drawers |
Two Tiers Tall Spaced 5.375” Cream - 5.25" Maple |
30 Std or 60 half | |||
|

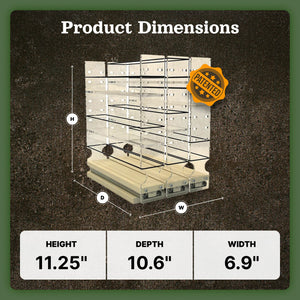

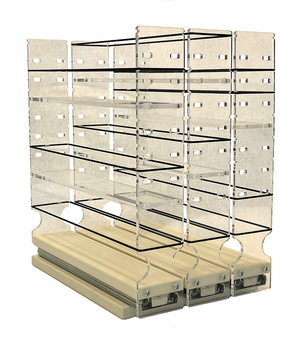

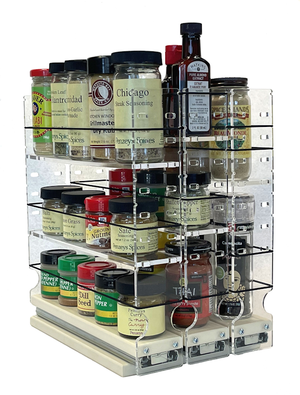

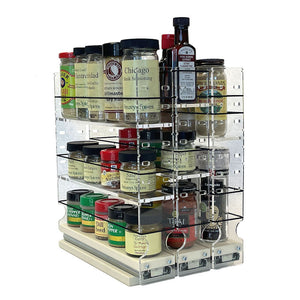

222 x ADJ x 11 DCP
|
Three 2.1” Wide Drawers | 6.9" | 11.25" | 5 Upper Tiers available, 7 different heights | Variable depending upon shelf locations | |
|

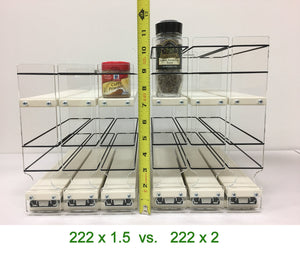

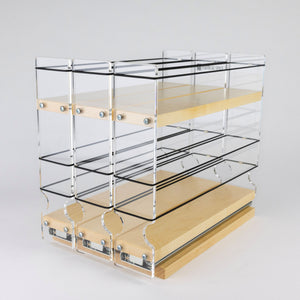

222 x 1.5 x 11
|
|
Three 2.1” Wide Drawers | Two Tiers Tall Spaced 5.375” Cream - 5.25" Maple | 15 Std & 15 half | ||
|

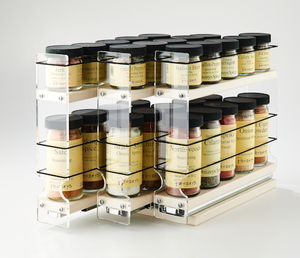

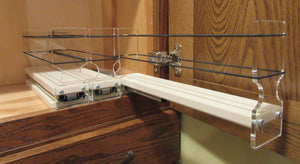

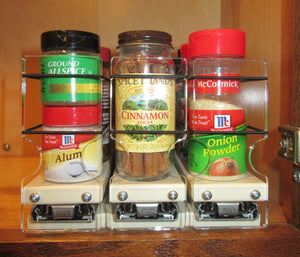

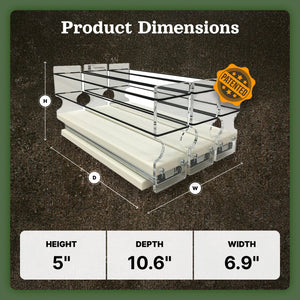

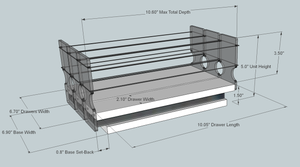

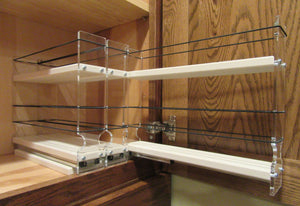

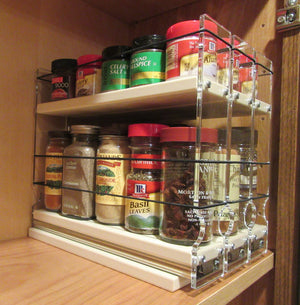

222 x 1 x 11
|
Three 2.1” Wide Drawers | Single Height Drawers | 15 Std | |||
|

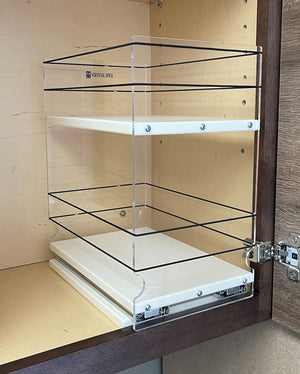

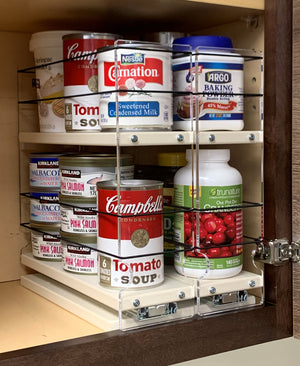

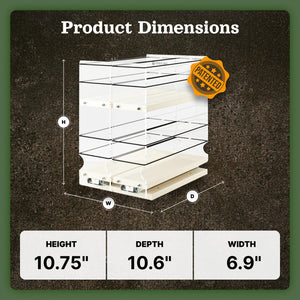

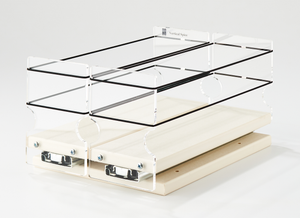

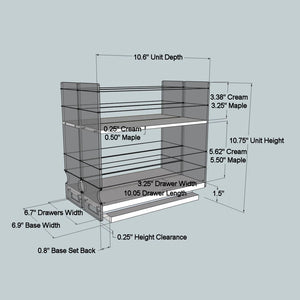

33 x 2 x 11
|
Two 3.25” Wide Drawers | Two Tiers Tall Spaced 5.625” Cream - 5.5" Maple | Large Containers | |||
|

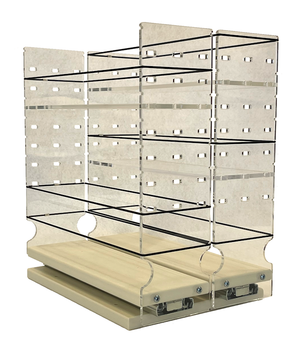

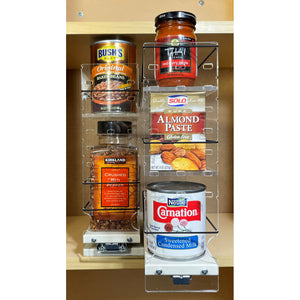

33 x ADJ x 11 DCP
|
Two 3.25” Wide Drawers | 6.9" | 11.25" | 3 Upper Tiers available, 7 different heights | Larger Containers | |
|

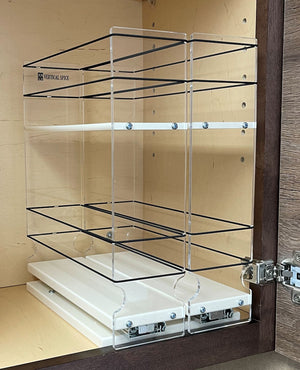

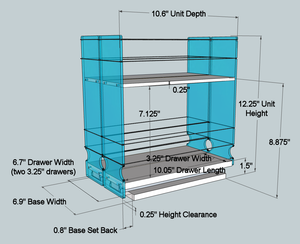

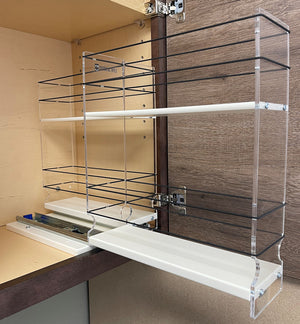

33 x 2TL x 11 DCP
|
Two 3.25” Wide Drawers | 6.9" | 12.25" | Two Tiers Tall Spaced 7.12” | Large Containers | |
|

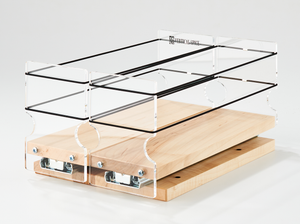

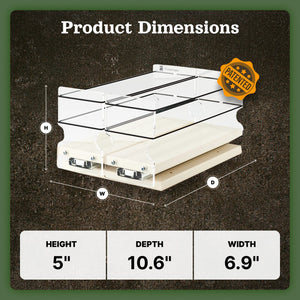

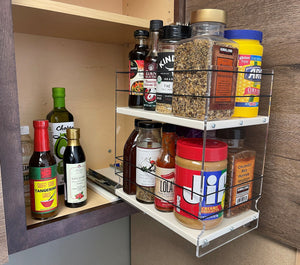

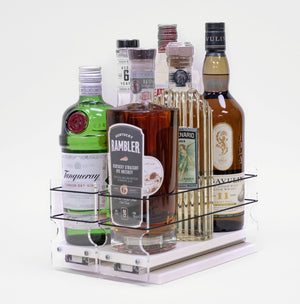

33 x 1 x 11
|
Two 3.25” Wide Drawers | Single Height Drawers | Large and Tall Containers | |||
|

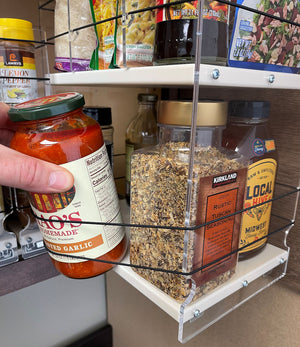

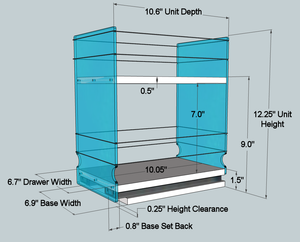

6 x 2TL x 11 DCP
|
One 6.7” Wide Drawer | 6.9" | 12.25" | Two Tiers Tall Spaced 7.0” | Large Containers | |
|
6 x 1 x 11
|
|
One 6.7” Wide Drawer | Single Height Drawer | Largest and Tall Containers | ||
|

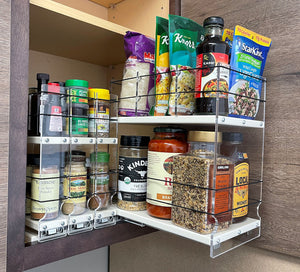

23 x 2 x 11
|
|
One 2.1” and One 3.25” Wide Drawer | 2.1” Drawer Two Tiers Tall Spaced 5.375” Cream - 5.25" Maple | 10 Std and Large Containers | ||
|
23 x 1.5 x 11
|
|
One 2.1” and One 3.25” Wide Drawer | 2.1” Drawer Two Tiers, Two Tiers Tall Spaced 5.375” Cream - 5.25" Maple | 5 Std & 5 half + Larges | ||
|
23 x 1 x 11
|
|
One 2.1” and One 3.25” Wide Drawer | Single Height Drawers | 5 Std + Large Containers | ||
|
5 x 2TL x 11 DCP
|
|
One 5.55” Wide Drawer | Two Tiers Tall Spaced 7.0” | Large Containers | ||
|
5 x 1 x 11
|
|
One 5.55” Wide Drawer | Single Height Drawer | Largest and Tall Containers | ||
|
22 x 2 x 11
|
|
Two 2.1” Wide Drawers | Two Tiers Tall Spaced 5.25” | 20 Std or 40 half | ||
|
22 x ADJ x 11 DCP
|
|
Two 2.1” Wide Drawers | 3 Upper Tiers available, 7 different heights | Variable depending upon shelf locations | ||
|
22 x 1.5 x 11
|
|
Two 2.1” Wide Drawers | Two Tiers Tall Spaced 5.25” | 10 Std & 10 half | ||
|
22 x 1 x 11
|
|
Two 2.1” Wide Drawers | Single Height Drawers | 10 Std | ||
|
4 x 2 x 11
|
|
One 4.4” Wide Drawer | Two Tiers Tall Spaced 5.625” Cream - 5.5" Maple | Large Containers | ||
|
4 x 2TL x 11 DCP
|
|
One 4.4” Wide Drawer | Two Tiers Tall Spaced 7.12” | Large Containers | ||
|
4 x 1 x 11
|
|
One 4.4” Wide Drawer | Single Height Drawer | Large Containers | ||
|
3 x 2 x 11
|
|
One 3.25” Wide Drawer | Two Tiers Tall Spaced 5.625” Cream - 5.5" Maple | Large Containers | ||
|
3 x ADJ x 11 DCP
|
|
One 3.25” Wide Drawer | 2 Upper Tiers available, 7 different heights | Large Containers | ||
|
3 x 2TL x 11 DCP
|
|
One 3.25” Wide Drawer | Two Tiers Tall Spaced 7.12” | Large Containers | ||
|
3 x 1 x 11
|
|
One 3.25” Wide Drawer | Single Height Drawer | Large and Tall Containers | ||
|
2 x 2 x 11
|
|
One 2.1” Wide Drawer | Two Tiers Tall Spaced 5.375” Cream - 5.25" Maple | 10 Std | ||
|
2 x ADJ x 11 DCP
|
|
One 2.1” Wide Drawer | 2 Upper Tiers available, 7 different heights | Variable depending upon shelf locations | ||
|
2 x 1.5 x 11
|
|
One 2.1” Wide Drawer | Two Tiers Tall Spaced 5.375” Cream - 5.25" Maple | 5 Std & 5 half | ||
|
2 x 1 x 11
|
|
Two 2.1” Wide Drawer | Single Height Drawer | 5 Std or 10 half | ||
|
222 x 2 x 14
|
|
Three 2.1” Wide Drawers | Two Tiers Tall Spaced 5.25” | 36 Std or 72 half | ||
|
222 x 1 x 14
|
|
Three 2.1” Wide Drawers | Single Height Drawers | 18 Std or 36 half | ||
|
33 x 1 x 14
|
|
Two 3.25” Wide Drawers | Single Height Drawers | Large and Tall Containers | ||
|
6 x 1 x 14
|
|
One 6.7” Wide Drawer | Single Height Drawer | Largest and Tall Containers | ||
|
5 x 1 x 14
|
|
One 5.55” Wide Drawer | Single Height Drawer | Largest and Tall Containers | ||
|
22 x 2 x 14
|
|
Two 2.1” Wide Drawers | Two Tiers Tall Spaced 5.25” | 24 Std or 48 half | ||
|
4 x 2 x 14
|
|
One 4.4” Wide Drawer | 2 Tiers Tall Spaced 5.5” | Larger Containers | ||
|
4 x 1 x 14
|
|
One 4.4” Wide Drawer | Single Height Drawer | Larger and Tall Containers | ||
|
3 x 1 x 14
|
|
One 3.25” Wide Drawer | Single Height Drawer | Large and Tall Containers | ||
|
2 x 2 x 14
|
|
One 2.1” Wide Drawer | 2 Tiers Tall Spaced 5.25” | 12 Std or 24 half | ||
|
5 x 2 x 18
|
|
One 5.55” Wide Drawer | 2 Tiers Tall Spaced 8.0” | Largest Containers | ||
|
5 x 1 x 18
|
|
One 5.55” Wide Drawer | Single Height Drawer | Largest and Tall Containers | ||
|
22 x 2 x 18
|
|
Two 2.1” Wide Drawers | Two Tiers Tall Spaced 6.0” | 32 Std or 64 half | ||
|
22 x 1 x 18
|
|
Two 2.1” Wide Drawers | Single Height Drawers | 16 Std or 32 half | ||
|
4 x 2 x 18
|
|
One 4.4” Wide Drawer | 2 Tiers Tall Spaced 8.0” | Larger Containers | ||
|
4 x 1 x 18
|
|
One 4.4” Wide Drawer | Single Height Drawer | Larger and Tall Containers | ||
|
3 x 2 x 18
|
|
One 3.25” Wide Drawer | 2 Tiers Tall Spaced 6.0” | Large Containers | ||
|
3 x 1 x 18
|
|
One 3.25” Wide Drawer | Single Height Drawer | Large and Tall Containers | ||
|
2 x 2 x 18
|
|
One 2.1” Wide Drawer | 2 Tiers Tall Spaced 6.0” | 16 Std or 32 half | ||
|
2 x 1 x 18
|
|
One 2.1” Wide Drawer | Single Height Drawer | 8 Std or 16 half | ||
|
2 x 1 x 22
|
|
One 2.1” Wide Drawer | Single Height Drawer | 10 Std | ||
|
2 x 2 x 22
|
|
One 2.1” Wide Drawer | 2 Tiers Tall Spaced 6.0” | 20 Std | ||
|
2 x 3 x 22
|
|
One 2.1” Wide Drawer | 3 Tiers Tall Spaced 6.0” | 30 Std or 60 half | ||
|
3 x 1 x 22
|
|
One 3.25” Wide Drawer | Single Height Drawer | Large and Tall Containers | ||
|
3 x 2 x 22
|
|
One 3.25” Wide Drawer | 2 Tiers Tall Spaced 6.0” | Large Containers | ||
|
3 x 3 x 22
|
|
One 3.25” Wide Drawer | 3 Tiers Tall Spaced 6.0” | Large Containers | ||
|
4 x 1 x 22
|
|
One 4.4” Wide Drawer | Single Height Drawer | Larger and Tall Containers | ||
|
4 x 2 x 22
|
|
One 4.4” Wide Drawer | 2 Tiers Tall Spaced 8.0” | Larger Containers | ||
|
5 x 1 x 22
|
|
One 5.55” Wide Drawer | Single Height Drawer | Largest and Tall Containers | ||
|
5 x 2 x 22
|
|
One 5.55” Wide Drawer | 2 Tiers Tall Spaced 8.0” | Largest Containers |
Patent US 201401252 A1 Click here for a: "Metric Version Product Chart"
All Vertical Spice units arrive fully assembled with side bands and mounting screws.
Drawer length is 10.05" for x11 units, 13.6” for x14 units and two 10.7” lengths for x22 products as measured between front and back plastics.
Depth: Measured from back of cabinet to inside the closed door.
Height*- 10.75" requires 12" space for Standard Spice Jar
- 9.25" requires 9.5" space for 1/2 sized Spice
Jar
- 5" requires 6" space for Standard Spice
Jar
Width: Minimum space between hinge and frame, fit to space by base width.
A standard
spice jar = Diameter 2" or less, Height up to 5" tall. Half-size = 2 1/8"
tall x 2" diameter (stack-able)
